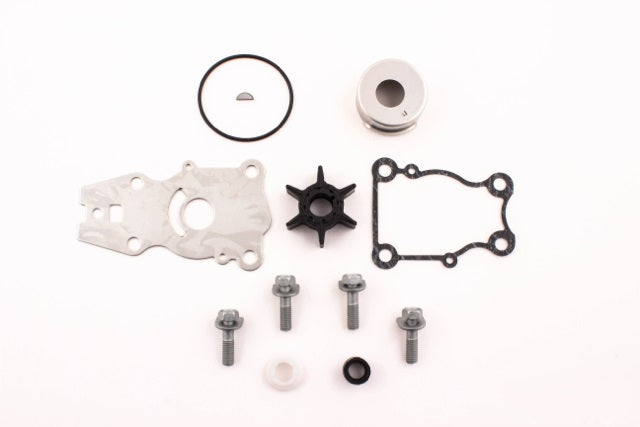

66T-W0078-00-00 - This Yamaha Water Pump Repair Kit applies to the following 4-Stroke outboard models:
- T25
- F30
- F40 (2000 to 2009)
Kit Includes:
1 Cartridge Insert 63D-44322-00-00
1 Cartridge Outer Plate 66T-44323-00-00
1 O-Ring 93210-59MG7-00
1 Water Pump Gasket 63D-44316-00-00
1 Woodruff Key 90280-03M03-00
1 Impeller 6H4-44352-02-00
4 Bolts, With Washer 90119-08M15-00
1 Water Seal Damper 2 663-44366-00-00
1 Pump Housing Cover 63D-44312-00-00
Additional models:
- F30TLR 0405
- F30TLRA 2002
- F30TLRB 2003
- F30TLRC 2004
- F30TLRD 2005
- F30TLRZ 2001
- F40BEJR 0407
- F40BMJH 0407
- F40BMLH 0407
- F40BMLH 0408
- F40BTLR 0407
- F40BTLR 0408
- F40EJR 0405
- F40EJR 0406
- F40EJRB 2003
- F40EJRC 2004
- F40EJRD 2005
- F40ESRA 2002
- F40ESRB 2003
- F40ESRY 2000
- F40ESRZ 2001
- F40MJH 0405
- F40MJH 0406
- F40MJHA 2002
- F40MJHB 2003
- F40MJHC 2004
- F40MJHD 2005
- F40MLH 0405
- F40MLH 0406
- F40MLHA 2002
- F40MLHB 2003
- F40MLHC 2004
- F40MLHD 2005
- F40MLHY 2000
- F40MLHZ 2001
- F40MSH 0405
- F40MSH 0406
- F40MSHA 2002
- F40MSHB 2003
- F40MSHC 2004
- F40MSHD 2005
- F40MSHY 2000
- F40MSHZ 2001
- F40TLR 0405
- F40TLR 0406
- F40TLRA 2002
- F40TLRB 2003
- F40TLRC 2004
- F40TLRD 2005
- F40TLRY 2000
- F40TLRZ 2001
- T25LA 0113
- T25LA 0114
- T25LA 0115
- T25LA 0116
- T25LA 0409
- T25LA 0410
- T25LA_0112
- T25LA_0411
- T25TLR 0405
- T25TLR 0406
- T25TLRA 2002
- T25TLRB 2003
- T25TLRC 2004
- T25TLRD 2005
- T25TLRZ 2001
